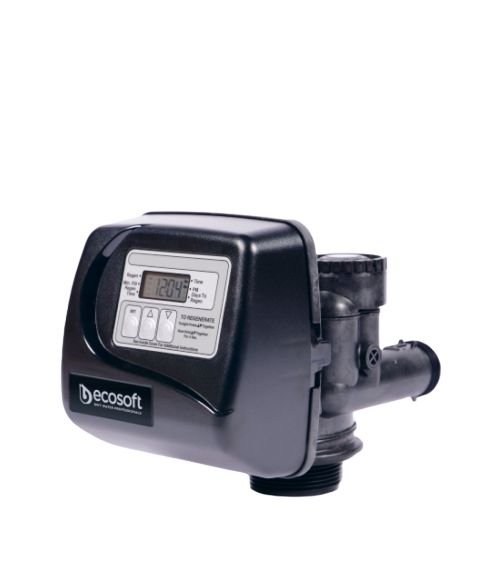

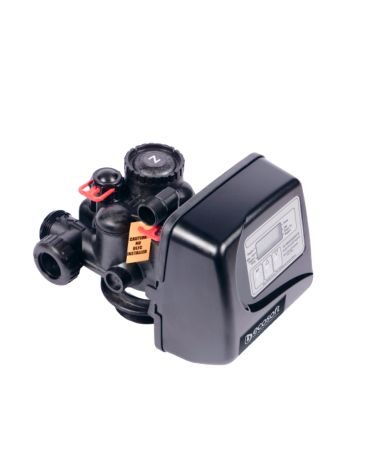

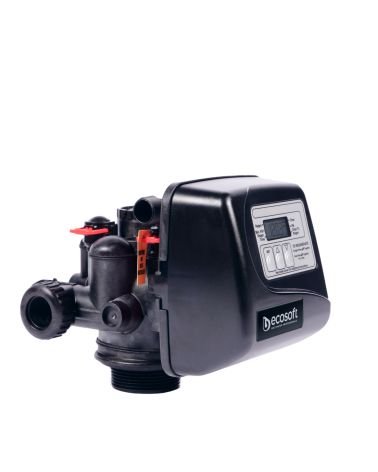

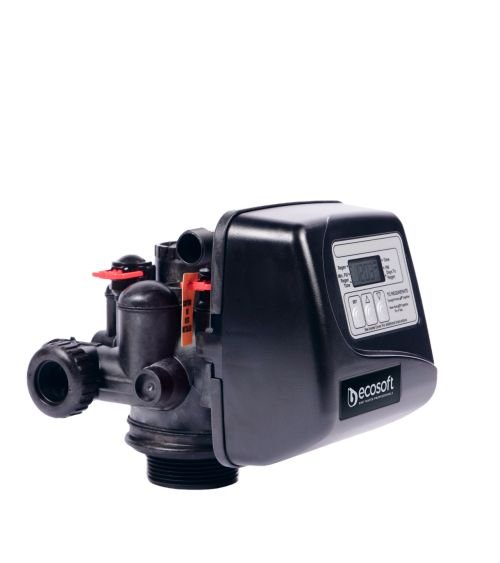

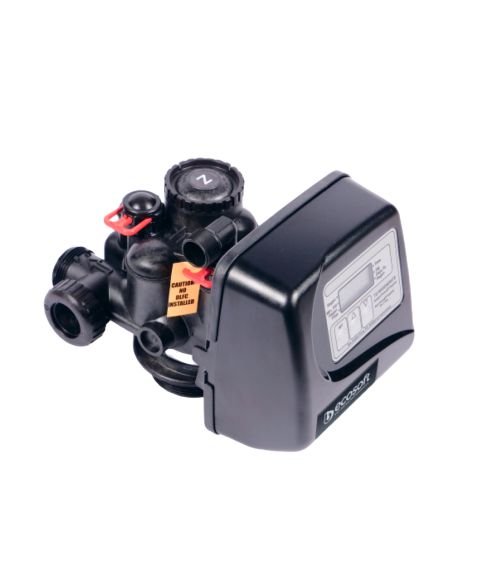

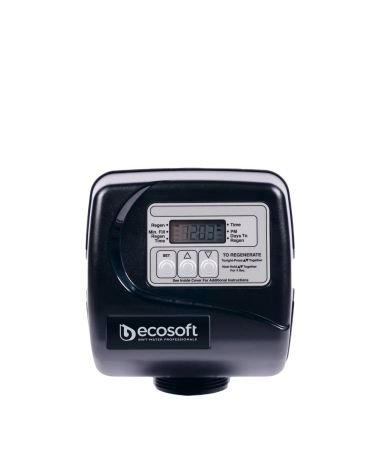

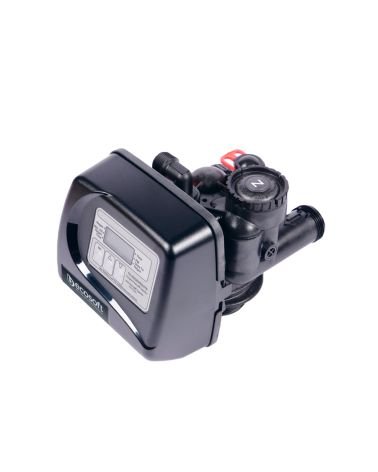

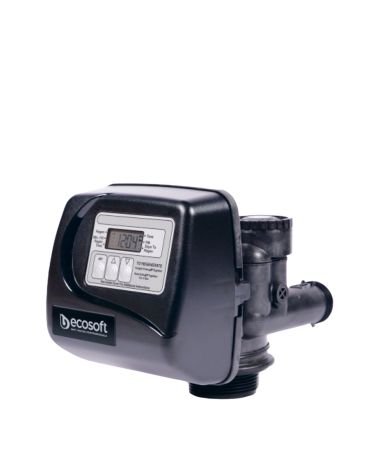

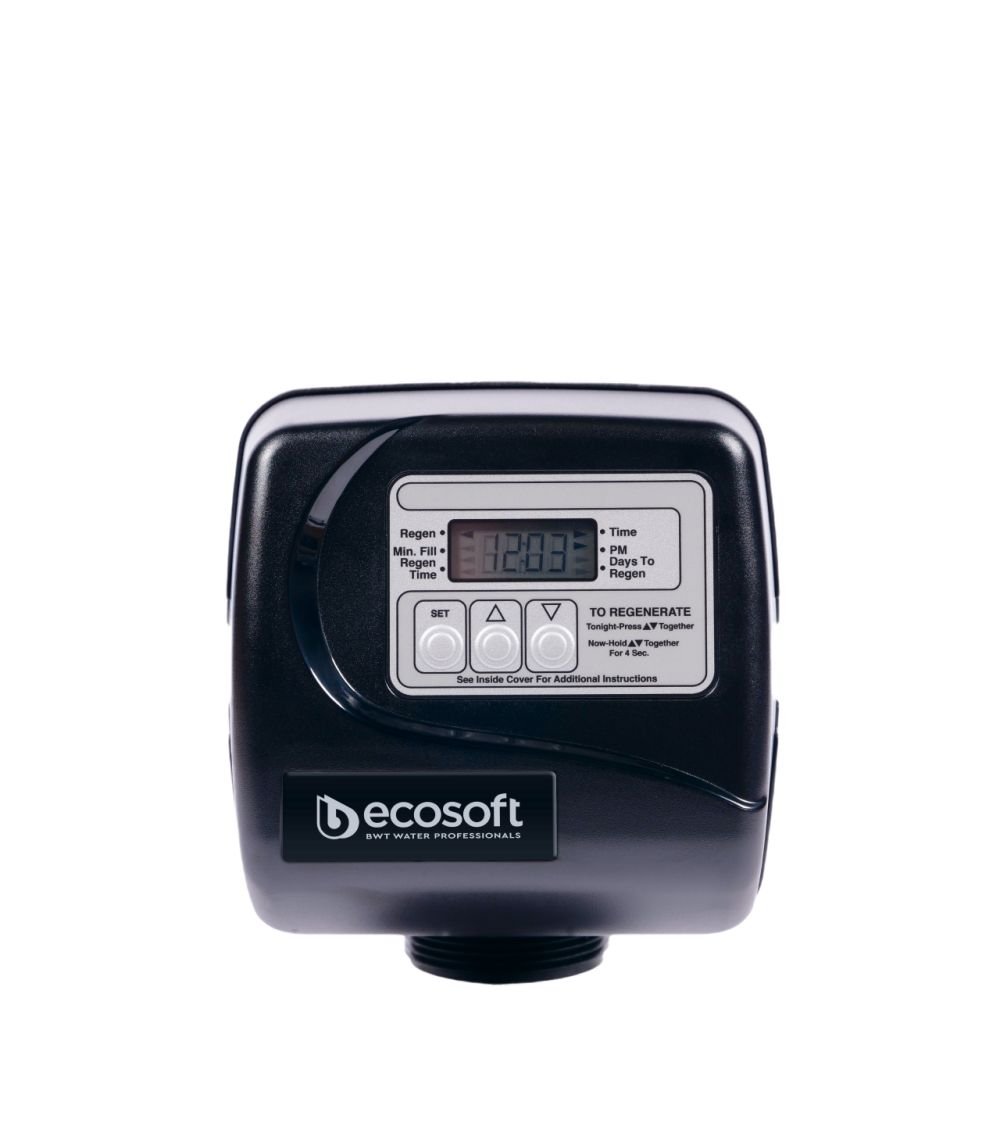

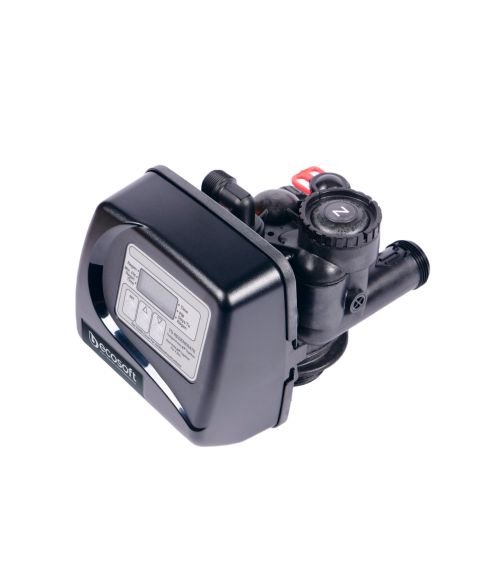

Water Specialist 1” TC Backwash Only Filter Valve (Time Clock Only)
238,21 €
V1TCBTZ-03
KEY FEATURES
- More informative 4 digit LCD Display with Status Indicators
- Solid state microprocessor with easy access front panel settings
- Service flow rate of 27 gpm, backwash 27 gpm
- Backwash and brining ability to 21” diameter tanks
- Front panel display for time of day, days until next regeneration
- Days between regeneration feature: 1–99 days standard; 7-day optional
- Double backwash feature offers optimum regeneration, cleaning ability and efficiency
- 10 selectable pre-programmed regeneration cycles
- Coin Cell Lithium battery back-up with a 8 hour carry over
- Auto detection of 50/60 Hz line frequency, with automatic 12/24 hour time keeping formats
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
SPECIFICATION
Specifications
FLOW RATES
Service @ 15 psi/1 bar drop (includes bypass and meter) - 102 lpm (6.12 m3/h) (27 gpm)
Backwash @ 25 psi/1.7 bar drop (includes bypass) - 102 lpm (6.12 m3/h) (27 gpm)
Cv service - 7.0
Cv backwash - 5.4
OPERATING PRESSURES
Minimum/Maximum: 20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum: 40º - 110º F (4º – 43º C)
DIMENSIONS & WEIGHT
Distributor Pilot - 1.050" OD Pipe (¾" NPS)
Drain Line - ¾" or 1" NPT
Brine Line - 3/8" or ½" OD Poly Tube
Mounting Base - 2 ½"- 8 NPSM
Height From Top Of Tank - 7 3/8" (187 mm)
Weight - 4.5 lbs (2 kg)
| ELECTRICAL SPECIFICATIONS |
POWER SUPPLY
|
|
| U.S. | International | |
| Supply Voltage | 100VAC to 120VAC |
200VAC to 240VAC
|
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
TANK APPLICATIONS
Water Softener: 6" - 21" Diameter
Water Filter (1): 6" - 21" Diameter
(1) Filter tank size calculated @ 10 gpm of backwash per square foot of bed area / 407 lpm per square meter of bed area.
CYCLES OF OPERATION (Softener Downflow)
1. Backwash 1st (upflow) - 3-12 minutes
2. Regenerate Draw/Slow Rinse (downflow) - 50-70 minutes
3. Backwash 2nd (upflow) - 3-12 minutes
4. Fast Rinse (downflow) - 3-8 minutes
5. Regenerant Refill (in service with treated water) - As programmed
6. Service (downflow)
Options: Backwash Filter, Bypass, Weather Cover
Compatible with the following typical concentrations of regenerants or chemicals: Sodium chloride, potassiumchloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
