SIZE AND WEIGHT

SPECIFICATION

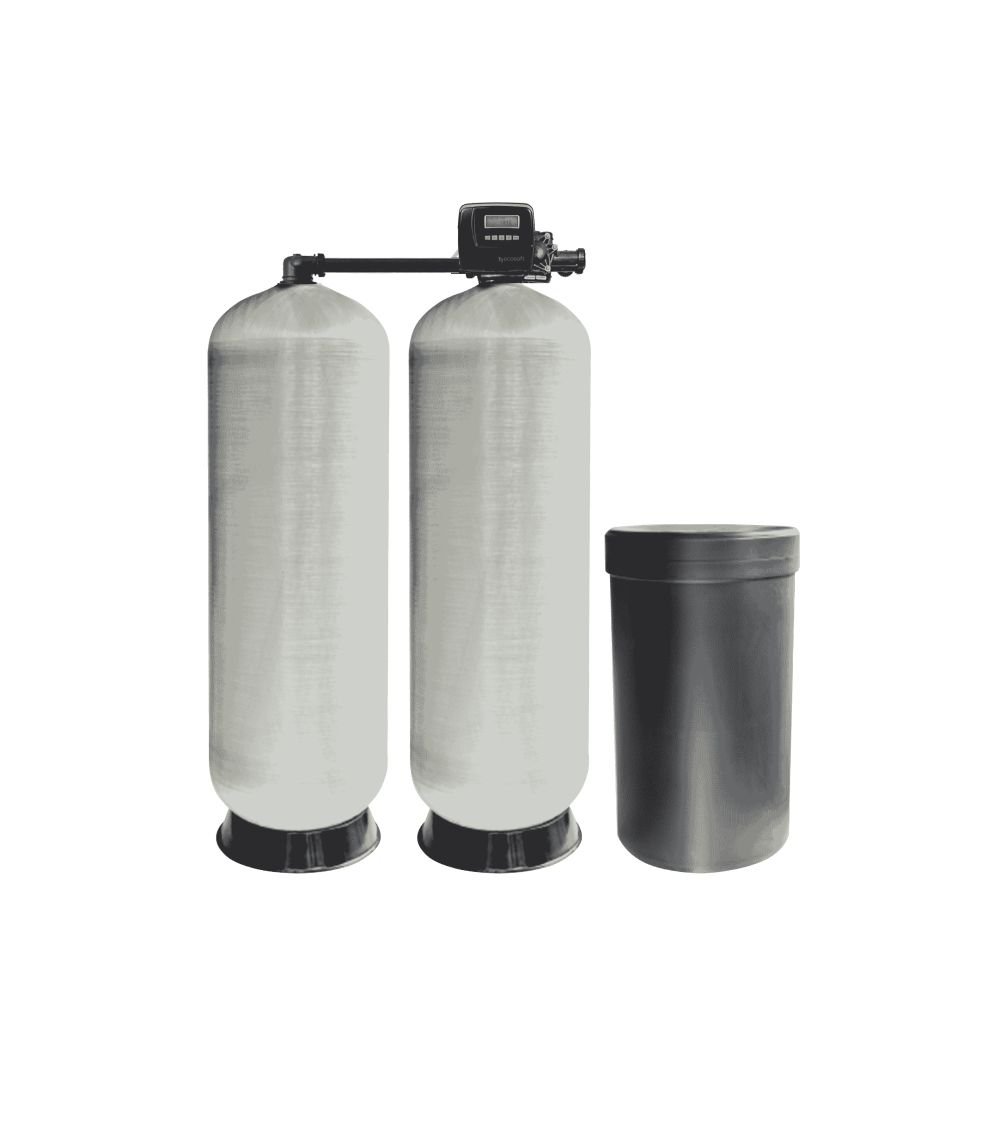

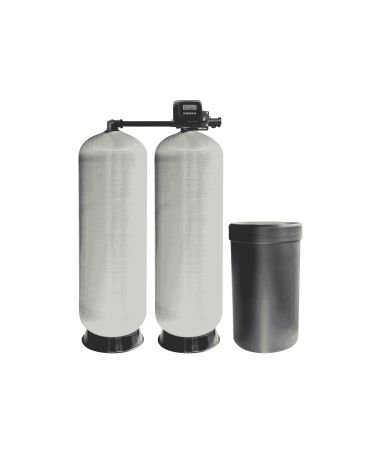

Set of equipment

CE TWIN 1,25" control valve ¹

^‍Pressure tank 21x62, 4" ²

Brine tank ³

           ¹ CE TWIN 1,25" valve assembly (VTT1CEDME-03):

• CE TWIN 1,25" control valve
• Top stack distributor, 14 segments
• Connection kit 1,25''
• Power supply
• Injector, DLFC - for Ecomix and cation exchange resin
• Funnel
• Valve instruction manual, instruction manual

             ² Pressure tank assembly

• Pressure tank 21x62, 4"
• Adaptor 4'' - 2,5''
• Riser DN 32 mm
• Bottom stack distributor, 15 segments

             ³ Brine tank assenbly

• Brine tank 24x50, 378 L
• Brine well assembly (brine valve, overflow set)
• Brine grid

Twin set may operate 2 units with alternativemode (the first unit in operation, the second -in regeneration or stand by) and can produce water during the day at constant flow rate.

CE CONTROL VALVE KEY FEATURES

• ‍Regeneration control by water volume: delayed regen, immediate, both
• Possibility to change the cycle of regeneration stages and their range of time
• Multilanguage menu: English, German, French, Ukrainian
• Different setting modes are available:

          - Twin or duplex configurations

          - Up to 6 systems to the system controller

          - 2 external devices simultaneously can be connected

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar) - 6,12 m³/h

          - Backwash (pressure drop 1,7 bar) - 6,12 m³/h

• Inlet, outlet - G 1″
• Drine - G 1″
• Brine line - G 3/8″
• Operating pressure - 2-6 bar
• Operating temperature +4...+30 ^oC
• Electrical requirements - 230 V, 50 Hz
• Electrical power - 30 W

* Only for Clack WS1.25 CE control valves includes meter, bypass, and 1.25" fitting kit

RECOMMENDED MEDIA VOLUME FOR ONE CYLINDER

• PC002 Katijonų mainų derva - 200 L
• HCRS-S Katijonų mainų derva - 200 L
• Ecomix A derva - 150 L
• Ecomix C derva - 150 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com.

*** The amount of Ecomix can be increased by no more than 25 liters.

ACCESSORIES**

• V3006 WS1 Bypass Assembly
• V3009 WS1 Auxiliary Microswitch Assembly
• V3191-01 WS1 Bypass Vertical Adapter Assy

** Not included in the basic set. Can installed as additional equipment.
