KEY FEATURES

• High dose of UV irradiation (30 mJ/cm2) sufficient to neutralize a wide spectrum of microorganisms
• Physical method of disinfection that does not require chemicals or generate any toxic byproducts

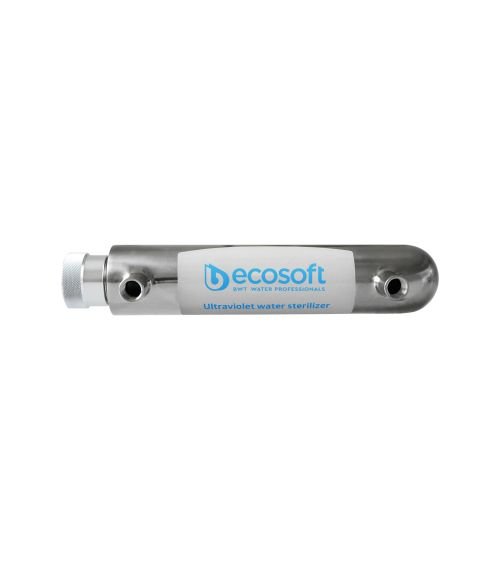

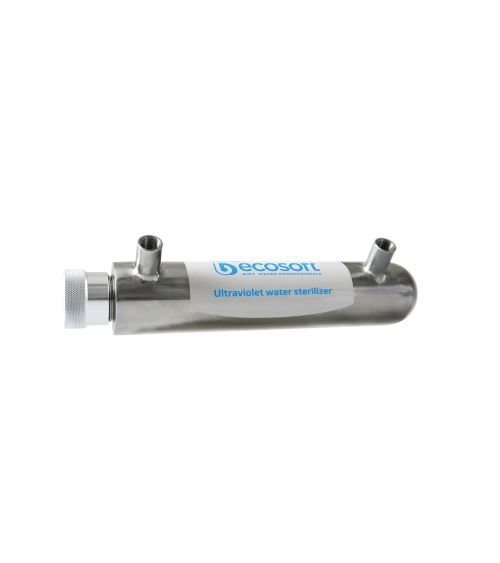

• Housing made of stainless steel by AISI 304
• The sleeve is made of high purity quartz, and is extra-resistant to formation of deposits or erosion
• Long efficient service life – up to 9 000 hours

SPECIFICATION

Operation

Water passes through the ultraviolet disinfectant, where the disinfection process takes place.

The quartz cover is a necessary measure to prevent water from entering the case of the emitter.

UV disinfection unit maintenance

• Replace the lamp once a year
• Clean components to remove mechanical impurities and plaque

Technical data

• Maximum flow of disinfected water — 0.23 m³/h
• Type and number of emitters — 1 х T510
• Maximum inlet pressure — 8 bar
• Power supply — 230 V, 50 Hz
• Power consumption of one emitter — 10 W
• Diameter of piping — ¼" thread
• Lamp failure control device — visual
• Overall dimensions of assembled unit (length x width x height) — 270 × 52 × 90 mm
• Approximate weight — 1.3 kg

Feed water requirements

• Temperature of the treated water — +4...+30 °С
• Turbidity — 0.58 mg/L
• Total hardness — 2.5 meq/L
• Iron — 0.3 mg/L
• Manganese — 0.05 mg/L
• Hydrogen sulfide — 0.05 mg/L

Set of UV disinfection system

• Stainless steel housing assembly
• Quartz sleeve
• UV emitter
• Power supply (electronic ballast)
