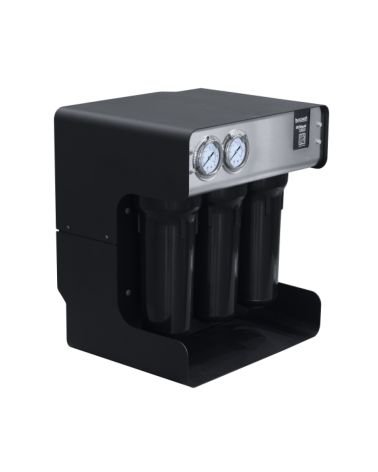

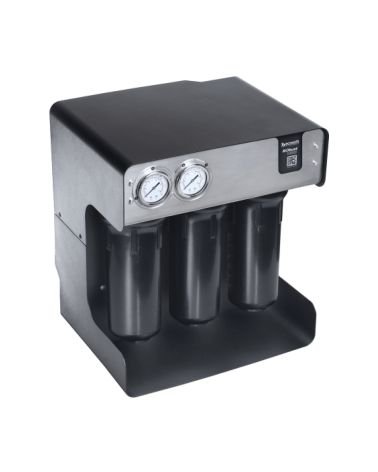

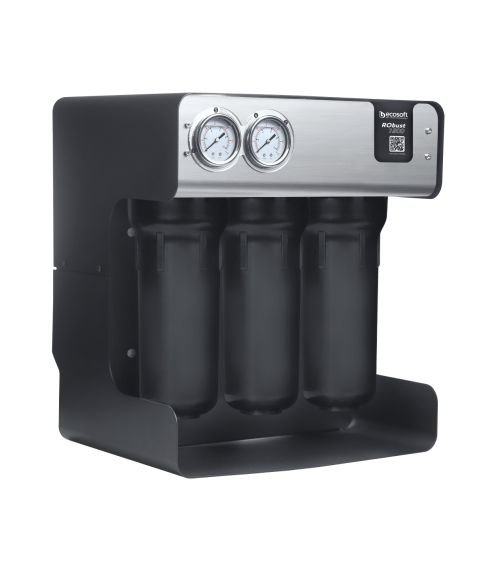

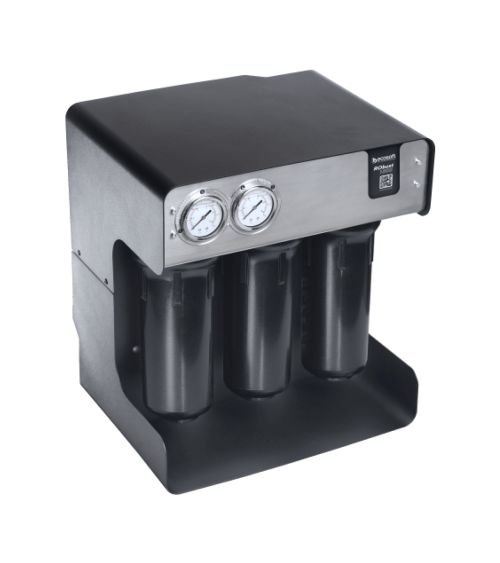

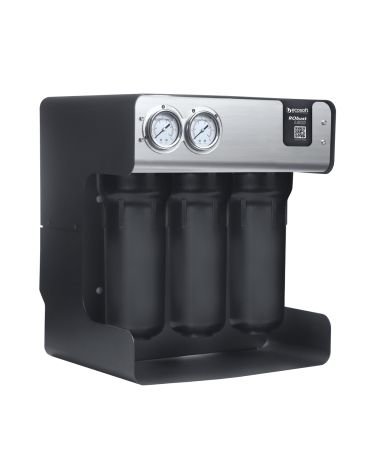

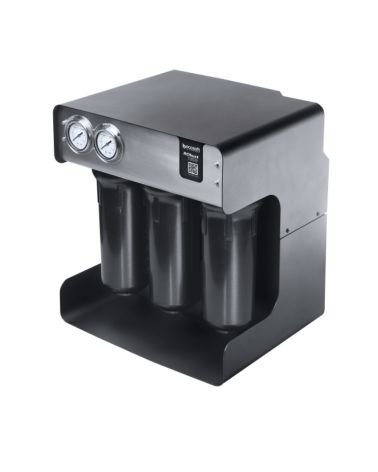

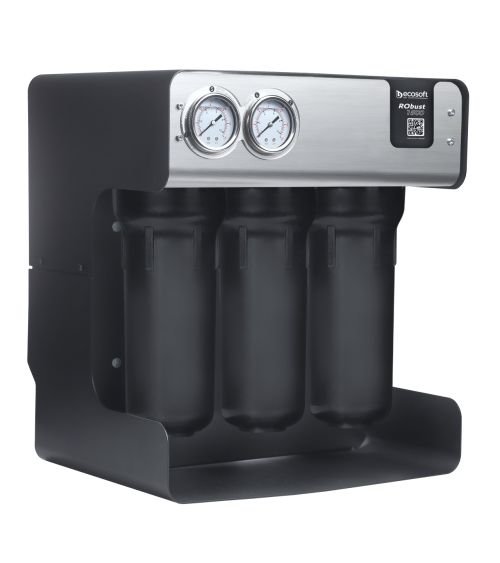

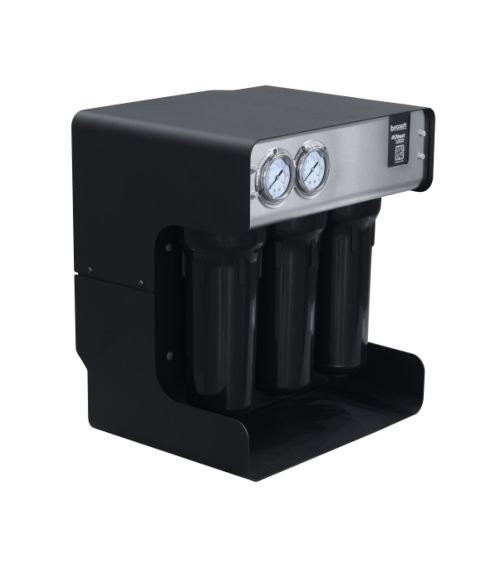

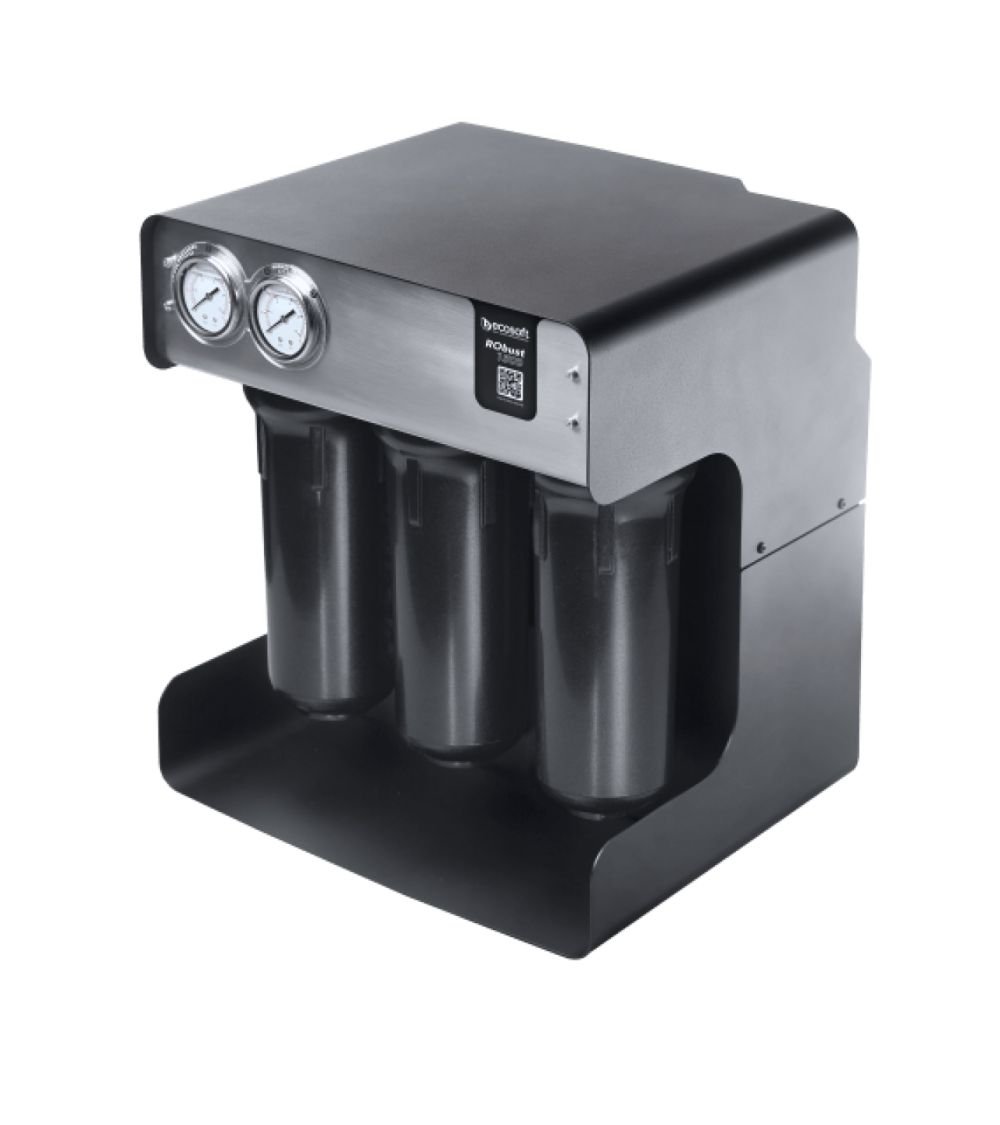

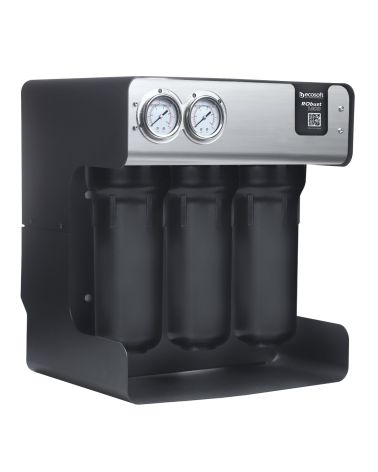

Ecosoft RObust 1500 direct flow reverse osmosis filter
671,55 €
PARAMETERS
Flow capacity 90-100 L/h
Water consumption 140–165 L/h
Waste water 50-65 L/h
Inlet water pressure 1..5 bar
Electrical requirement 230 V, 50 Hz
Power consumption 0.12 kW
PARAMETERS
Flow capacity 90-100 L/h
Water consumption 140–165 L/h
Waste water 50-65 L/h
Inlet water pressure 1..5 bar
Electrical requirement 230 V, 50 Hz
Power consumption 0.12 kW
ROBUST1500ECO
KEY FEATURES
- Flow rate 90 liters per hour
- Made to run 20 hours per hour
- Recovery rate 60-65% - filter is economical and environmentally-friendly
- Built-in pressure gauges indicating pump conditions
- CE marked and confirmed to be safe by EC New Approach Directives
SIZE AND WEIGHT
Dimensions, H×W×D: 362х300х417 mm
Filter weight 9,0 kg
SPECIFICATION
System components
- Assembled filter
- Pre–filter and post–filter
- Reverse osmosis membranes
- Drain saddle
- Installation fitting set
- Set of tubes
- Service wrenches
Specifications
- Inlet pressure — 1–5 bar
- Flow capacity — 90–100 L/h
- Water consumption — 140–165 L/h
- Waste water — 50 L/h
- Inlet water temperature — +4… +30 °С
- Room temperature — +5…+40 °С
- Power supply — 230 V, 50 Hz
Feed water requirements
- pH = 6.5–8.5
- TDS ≤ 1500 mg/L
- Hardness ≤ 10 meq/L (<500 mg/L CaCO₃)
- Chlorine ≤ 0.5 mg/L
- Iron ≤ 0.3 mg/L
- Manganese ≤ 0.05 mg/L
- COD ≤ 5 mg O₂/L
- Total microbial count (TMC) ≤ 100 CFU/ mL
- Coliform index = none
