• Energy efficiency with Grundfos pump
• Reliable performance with quality components and engineering
• Individual project evaluation per request
• ISO 9001 certified factory
• CE marked and confirmed to be safe in accordance with EC New Approach Directives

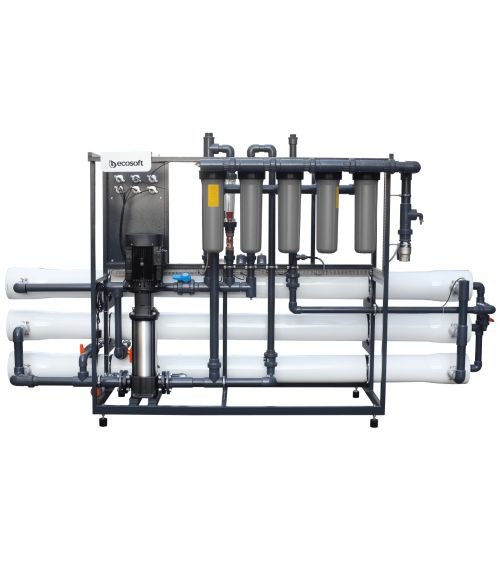

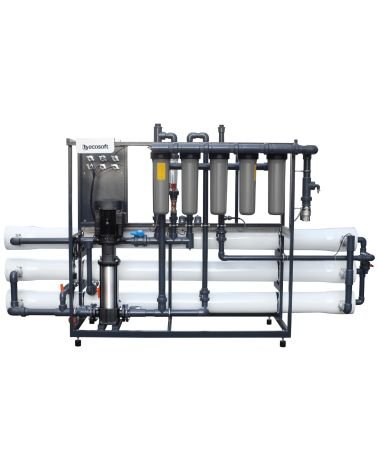

Equipment

• Grundfos® CR 15-9 high pressure pump — 1 pcs
• 8040-3 membrane vessel — 3 pcs
• BB20 sediment prefilter — 5 pcs
• Motorized valves (feed water in, flush out) — 2 pcs
• Balancing valves (concentrate reject, concentrate recycle) — 2 pcs

• Electrical cabinet with Ecosoft controller — 1 set

• Piping, instrumentation — 1 set

• Steel frame — 1 set

Options

• Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
• Dosing pump for antiscalant or other RO chemicals
• Permeate inlet for permeate membrane rinse
• Raw water blending line

Сonnections

• Influent water — 2″
• Permeate — 1½″
• Concentrate — 2″
• CIP inlet — 1½″
• CIP return — 1½″
• CIP permeate — 1″
• Antiscalant dosing port — ½″

Technical data

• Permeate capacity¹ — 9 m³/h
• Permeate recovery² — 75%
• Maximum TDS — 3000 mg/L
• Influent flow demand:
  - 12…16 m³/h (service)
  - 20 m³/h (rinse)
• Operating pressure — 8…12 bar
• Maximum pressure — 14 bar
• Electrical requirements — 380...400 V, 50 Hz (3 ph)
• Electrical power — 7,5 kW
• Prefilter rating — 5 μm
  ¹ depends on feed water TDS, temperature, and permeate recovery
  ² for low scaling/fouling water

Feed water requirements

• TDS — 3000 mg/L
• hardness — 150 mg/L CaCO₃
• iron — 0.1 mg/L
• manganese — 0.05 mg/L
• hydrogen sulfide — none
• silicate — 20 mg/L
• residual chlorine — 0.1 mg/L
• SDI — 5
• chemical oxygen demand - 4 mg/L O₂
