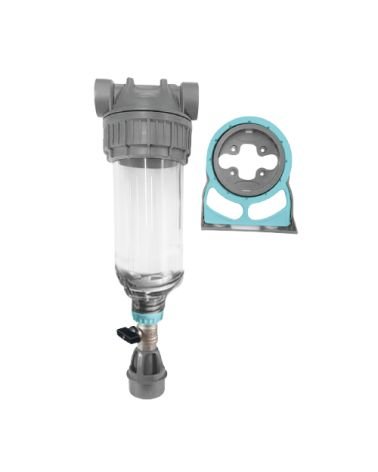

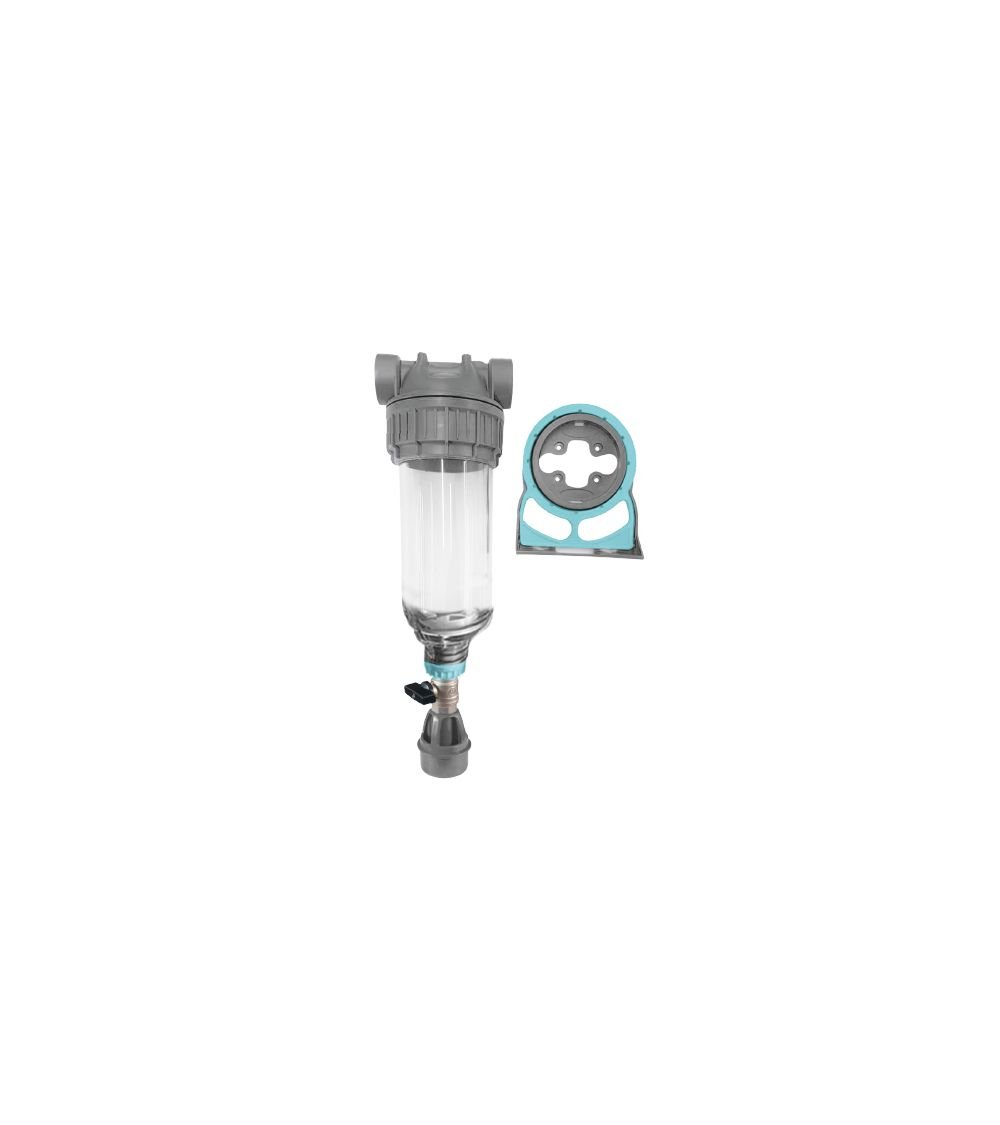

Plastic housing filter 3P ECO 9” ¾ transparent PET bowl with venturi valve + drain ½” ¾ – ¾" (EN)
0,00 €
FCPP3P0530
Three-pieces line (head-nut-bowl) are designed for water purification for residential and commercial applications. The peculiarity of this model is the drain valve. The raindrop shape of the bowl is designed to expel all collected sediments completely. A grid at the bottom of the bowl creates a collection tank, keeping the filter cartridge clean from floating sediments; this guarantees full efficiency in filtration and allows for a quick elimination of the collected dirt.
KEY FEATURES
- Drop style bowl to better flushing sediments off
- Twistable drain accessory for easy installation and loger life time
- Less pressure drop through star-like head design
- Compatible with three cartridge designs: DOE, BIG, COD3
- Smart placement of wrench in the bracket avoids its loss
SPECIFICATION
Technical specifications
- Materials: bowl - polyethylene (PET); head - polypropalene (PP) with brass connection units
- Clamping - threaded
- O-ring - EPDM
- Max. working pressure - 8 bar
- Max. working temperature - from 5°C (41°F) to 50°C (122°F)
- Bracketing - horizontal
- Connection - screw thread in inch
- Package - empty housing without filter cartridge
Packaging
- Quantity per package - 6 pcs
- Pieces on pallet - 216 pcs
