• Ecosoft controller OC6000 with econnect functionality providing online access to the RO machine
• Easy to use thanks to smart architecture
• Universal system construction allows connecting options of permeate flushing and raw water blending
• Grundfos worldwide guaranty
• CE marked and confirmed to be safe in accordance with EC New Approach Directives

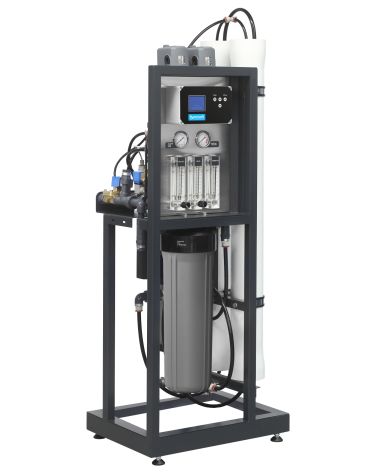

Equipment

• Grundfos® CM 3-14 pump
• 300 psi membrane vessels
• BB20 sediment prefilter
• Electrical panel with Ecosoft controller
• Danfoss solenoid valves
• Piping, instrumentation
• Steel frame
• Wooden crate

Options

• Filmtec™ ХLE-4040 / LCLE-4040 or Ecosoft ELP-4040 membrane
• Dosing pump for antiscalant
• Versatile set for raw water blending (120...1080 L/h) or permeate flushing

Connections:

• influent water — 1"
• permeate — 1"
• concentrate — 1"
• antiscalant dosing port - ½″
• raw water blending port - ⅜″
• permeate flushing input port - 1"

Specifications

• Permeate capacity* — 1000 L/h
• Permeate recovery** — 75%
• Maximum TDS — 3000 mg/L
• Influent flow demand
  - 1300…1500 L/h (service)
  - 3000…4000 L/h (rinse)
• Operation pressure — 8…12 bar
• Maximum pressure — 14 bar
• Electrical requiremnt — 230 V, 50 Hz (1 ph)
• Electrical power — 2.0 kW
• Prefilter rating — 5 μm

* depends on feed water TDS, temperature, and permeate recovery

**  for low scaling/fouling water

Feed water requirements

• Influent water temperature — +5...+40 °С
• Residual chlorine, max — 0.1 mg/L
• Hardness — up to 3 meq/L (150 mg/L CaCO₃)
• Iron — up to 0.1 mg/L
• Manganese — up to 0.05 mg/L
• Silicate — up to 20 mg/L
• Chemical oxygen demand, max  — 4.0 mg О₂/L
• Hydrogen sulfide - none

The limitations may be exceeded if using antiscalant, oxygen scavenger, or other RO chemical pretreatment.


Controller ОС 6000 provides best possibilities for professional maintenance:

— measures flow rate and volume of purified water;

— controls quality of feed water and treated water;

— purified water discharge mode;

— remote update of firmware.
