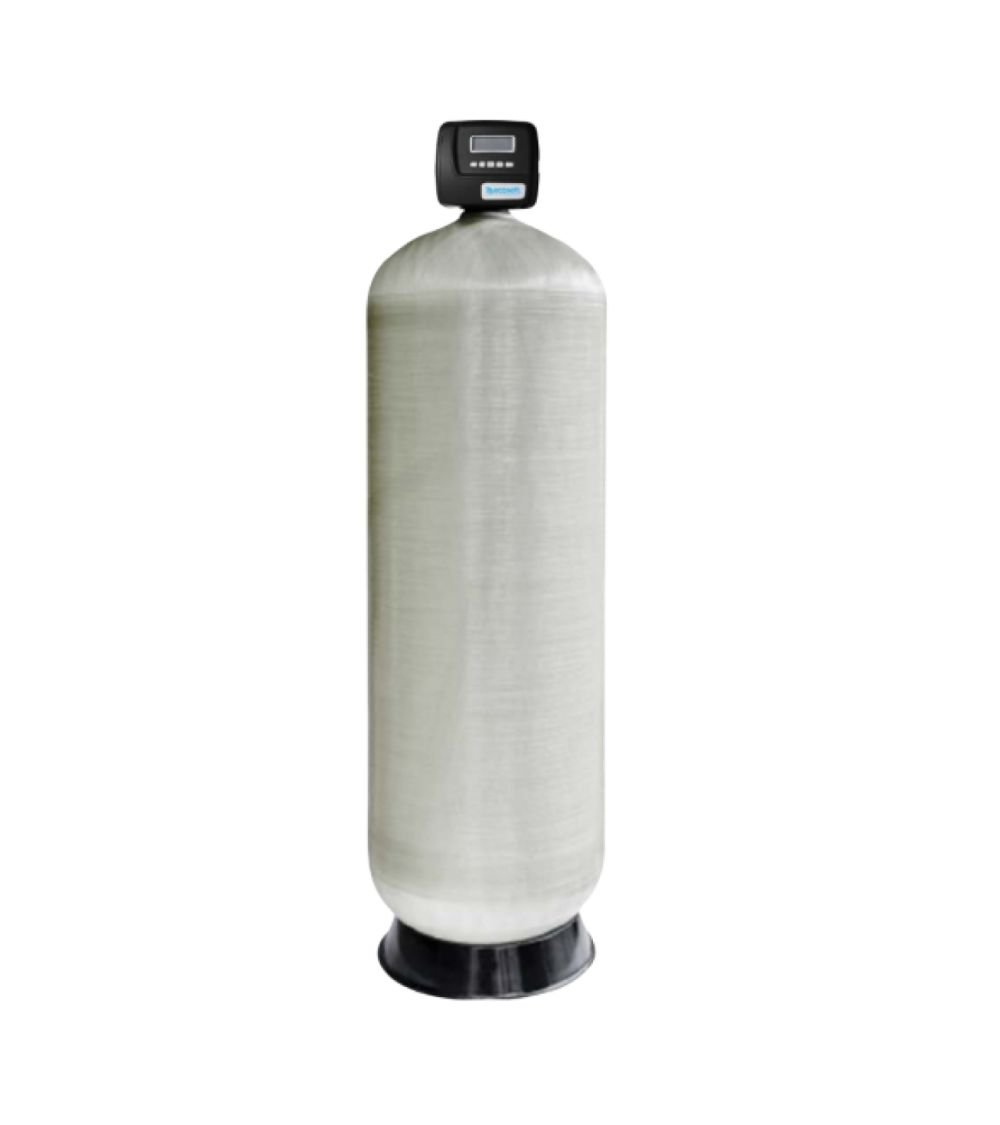

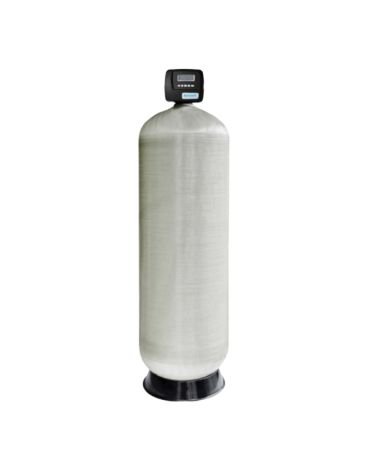

Backwash filter assy 24x72 w/o material, 1.5" CE valve (EN)

Esame atviri kainų pasiūlymams

Jūsų pasiūlymas išsiųstas.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Privalomi laukai

Kraunama

3 836,00 €
Kiekis

PARAMETERS

Media volume 105...226,4 L

Control valve Clack CE 1,5"

Pressure tank 24x72, 4"

Electrical power 30 W

Volume of pressure tank 450 L

Operating pressure 2-6 bar

PREKĖS ŽENKLAS:
ECOSOFT (BWT)
Backwash filter assy 24x72 w/o material, 1.5" CE valve (EN), KAINA BE PVM: 3170.247934, KODAS: BF2472CE15 | 001
BF2472CE15

KEY FEATURES

  • Ready sets for different filtration medias
  • Basic set ready to work with carbon medias
  • The set is designed for convenient and quick installation

SIZE AND WEIGHT

Backwash 2472 w/o material 1.5" CE

Dimensions, H×W×D: 2370 x 615 mm

Filter weight 52 kg

SPECIFICATION

Set of equipment

CE 1,5" control valve 1

‍Pressure tank 24x72, 4" 2

           1 CE 1,5" valve assembly (V15CEDТ):

  • CE 1,5" control valve
  • 1,5" meter assembly
  • DLFC
  • Top stack distributor, insert 50 mm
  • Drain fitting 1''
  • Power supply
  • Funnel
  • Valve instruction manual, Instruction manual

             2 Pressure tank assembly

  • Pressure tank 24x72, 4"
  • Adaptor 4" - 2"
  • Riser DN 50 mm
  • Bottom stack distributor, 4", 50 mm solvent

CE CONTROL VALVE KEY FEATURES

  • Regeneration control by water volume : delayed regen, immediate, both
  • Possibility to change the cycle of regeneration stages and their range of time
  • Multilanguage menu : English, German, French, Ukrainian
  • Different setting modes are available:
  1. twin or duplex configurations
  2. up to 6 systems to the system controller
  3. 2 external devices simultaneously can be connected

SPECIFICATIONS

  • Water flow rate*

          - Service (pressure drop 1 bar) - 15,9 m3/h

          - Backwash (pressure drop 1,7 bar) - 11,8 m3/h

  • Inlet, outlet - G 1,5″
  • Drine - G 1,25″
  • Brine line - G 3/8′′
  • Operating pressure - 2-6 bar
  • Operating temperature +4...+30 oC
  • Electrical requirements - 230 V, 50 Hz
  • Electrical power - 30 W
  • Volume of pressure tank - 450 L
  • The volume of the rounded side - 46 L
  • Dry system weight - 52 kg

RECOMMENDED MEDIA VOLUME

  • Granular activated carbon Centaur 12x40 - 105 kg
  • Activated Carbon Filtrasorb 300 - 125 kg
  • Filter-AG PLUS media - 226,4 L
  • Filter-AG material - 226,4 L
  • Birm filter media - 226,4 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

  • V3070 WS2 Service or Fill Switch Assembly
  • V3097BSPT WS1.5" No Hard Water Bypass Male x Female BSPT
  • V3071BSPT MAV 1.5 BSPT Revision 2
  • V3040BSPT-15 WS1.5 Meter Assembly Male x Female NPT 15' Meter Cable

** Not included in the basic set. Can installed as additional equipment.
