Dimensions, H×W×D: 1586 x 258 mm

SPECIFICATION

Set of equipment

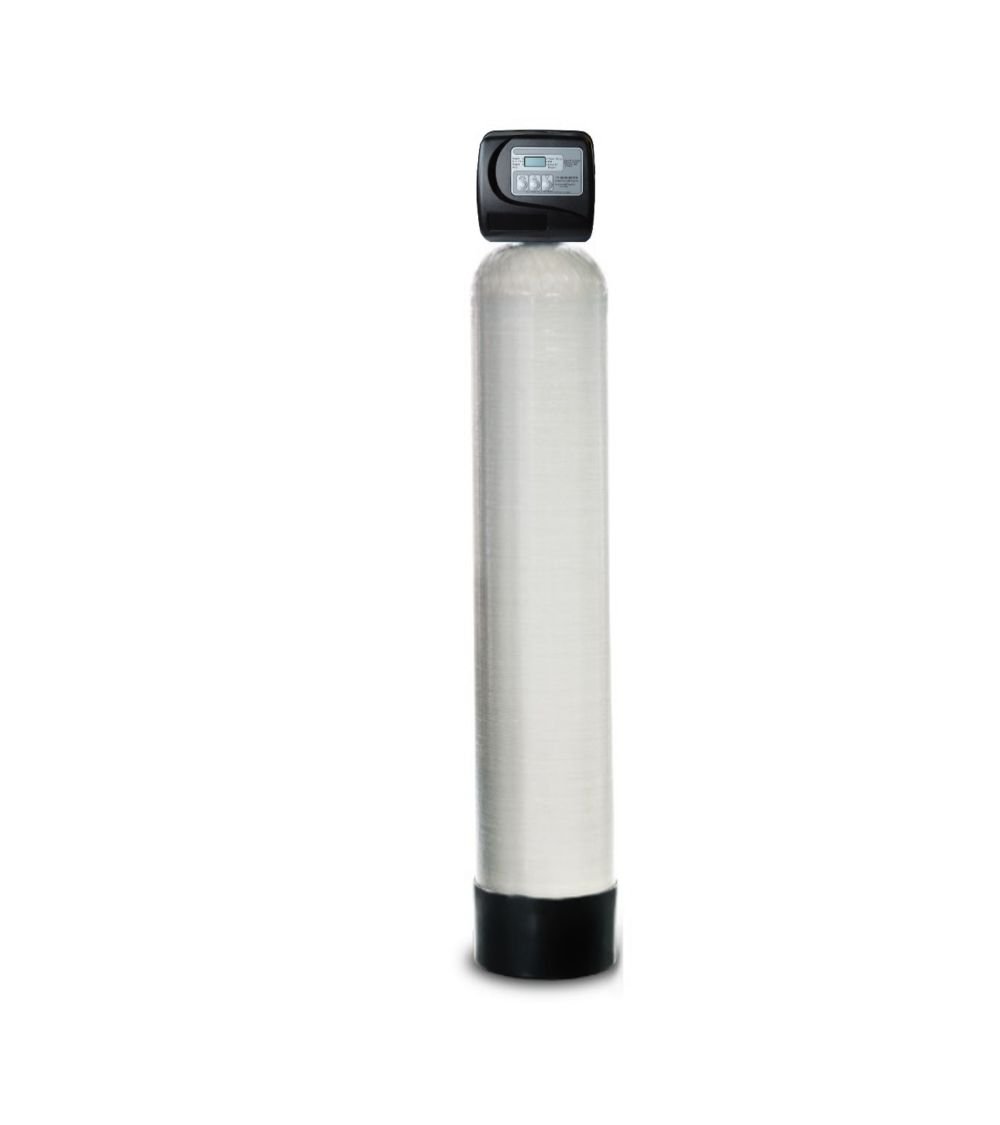

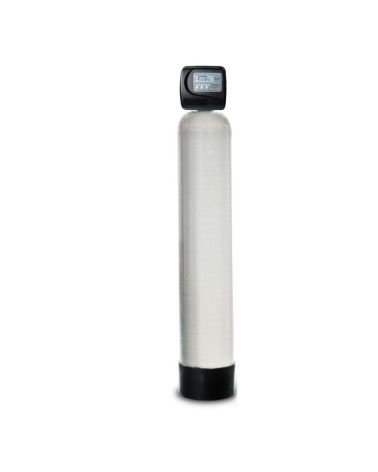

TC 1" control valve ¹

^‍Pressure tank 10x54, 2,5" ²

Brine tank ³

           ¹ TC 1" valve assembly (V1TCBTZ):

• TC 1" control valve
• Top stack distributor, 11 segments
• Connection kit 1''
• Power supply
• DLFC
• Funnel
• Valve instruction manual, instruction manual

             ² Pressure tank assembly

• Pressure tank 10x54, 2,5"
• Riser
• Bottom stack distributor

TC CONTROL VALVE KEY FEATURES

• Service flow rate of 27 gpm, backwash 27 gpm
• Double backwash feature offers optimum regeneration, cleaning ability and efficiency
• 10 selectable pre-programmed regeneration cycles
• Days between regeneration feature: 1–99 days standard; 7-day optional

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar) - 6,13 m³/h

          - Backwash (pressure drop 1,7 bar) - 6,13 m³/h

• Inlet, outlet - G 1″
• Drine - G 1″
• Operating pressure - 2-6 bar
• Operating temperature +4...+30 ^oC
• Electrical requirements - 230 V, 50 Hz
• Electrical power - 30 W
• Volume of pressure tank - 63 L
• The volume of the rounded side - 2,5 L
• Dry system weight - 10 kg

RECOMMENDED MEDIA VOLUME

• Granular activated carbon Centaur 12x40 - 15 kg
• Activated Carbon Filtrasorb 300 - 25 kg
• Filter-AG filter media - 28,3 kg
• Filter-AG PLUS Filter media - 28,3 kg
• Calcite filter media 16x40 - 15,6 kg

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

• V3006 WS1 Bypass Assembly
• V3009 WS1 Auxiliary Microswitch Assembly
• V3191-01 WS1 Bypass Vertical Adapter Assy

** Not included in the basic set. Can installed as additional equipment.
