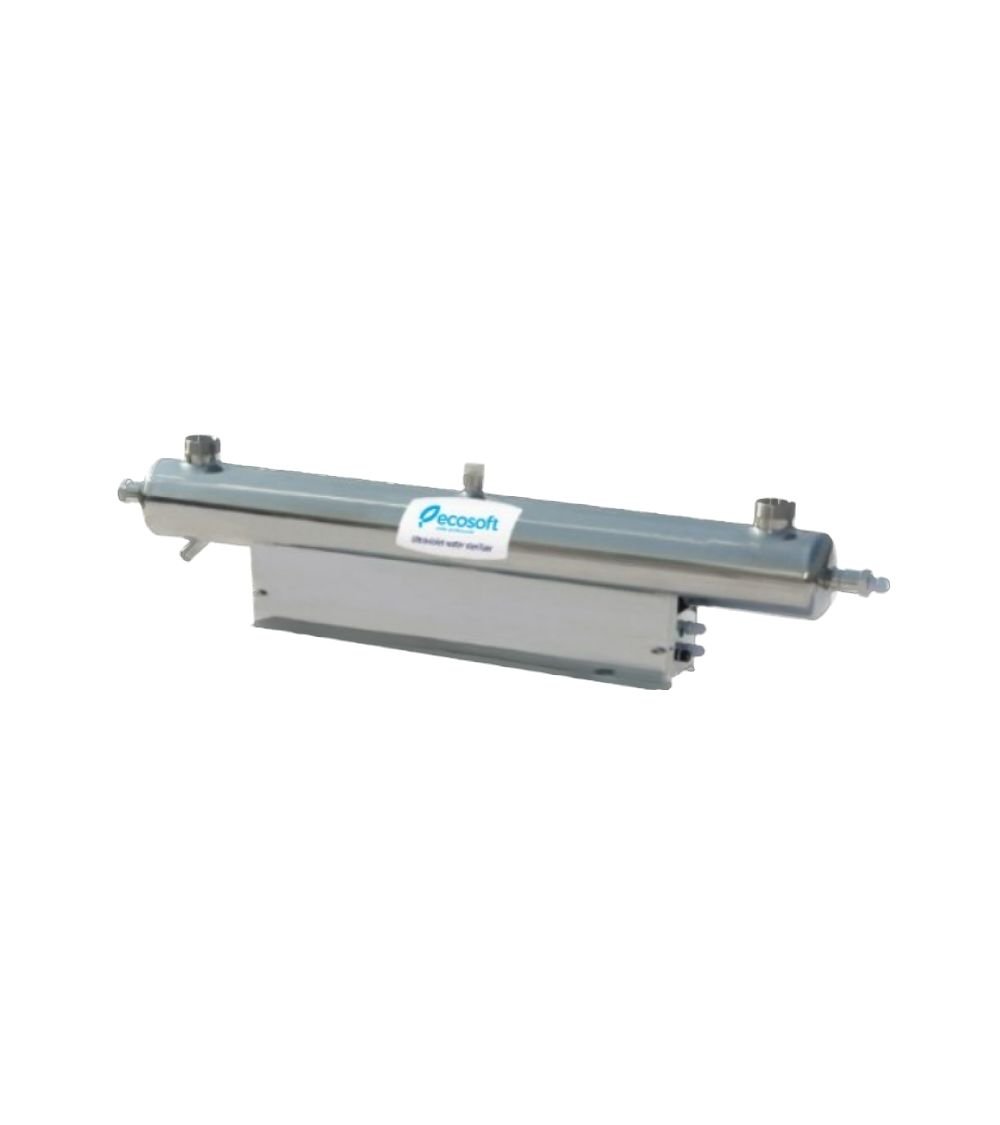

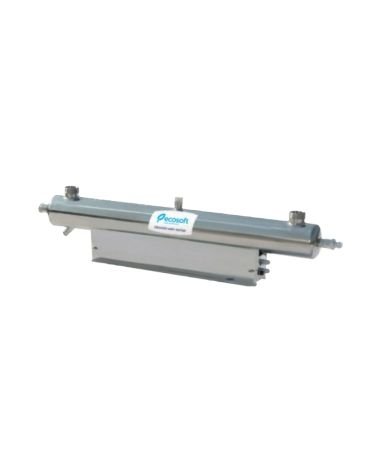

Ecosoft UV system EB-45
1 388,45 €
Jeigu norėtumėte gauti pranešimą, kai prekė taps pasiekiama, įveskite savo el. pašto adresą į žemiau esantį laukelį.
Sistema automatiškai informuos jus, kai tik prekė bus sandėlyje. Be to, sistema praneš ir mums apie jūsų susidomėjimą šia preke, todėl galbūt galėsime ją surasti jums greičiau.
Kol prekės nėra sandėlyje, sistema kai kada pakeičia jos kainą į 0 €
Jeigu norite sužinoti tikslią prekės kainą ar gauti pasiūlymą, parašykite mums el. paštu info@osmosas.lt. Atsakysime kuo greičiau ir suteiksime visą reikiamą informaciją.
PARAMETERS
Max flow rate 10.71 m³/h
Type and number of emitters 2 х T585
Max inlet pressure 8 atm
Electrical power of one emitter 85 W
Dimensions (L x W x H) 940 × 192 × 160 mm
Weight 11.7 kg
PARAMETERS
Max flow rate 10.71 m³/h
Type and number of emitters 2 х T585
Max inlet pressure 8 atm
Electrical power of one emitter 85 W
Dimensions (L x W x H) 940 × 192 × 160 mm
Weight 11.7 kg
EB45
KEY FEATURES
- Large dose of UV irradiation (30 mJ/cm2) sufficient to neutralize a wide spectrum of microorganisms
- Physical method of disinfection that does not require chemicals or generate any toxic byproducts
- Housing made of stainless steel by AISI 304
- The sleeveis made of high purity quartz, and is extra-resistant to formation of depositsor erosion
- Long efficient service life – up to 9 000 hours
SPECIFICATION
Operation
Water passes through the ultraviolet disinfectant, where the disinfection process takes place.
The quartz cover is a necessary measure to prevent water from entering the case of the emitter.
UV disinfection unit maintenance
- Replace the lamp once a year
- Clean components to remove mechanical impurities and plaque
Technical data
- Maximum flow of disinfected water — 10.71 m³/год
- Type and number of emitters — 1 х T585
- Maximum inlet pressure — 8 bar
- Power supply — 230 V, 50 Hz
- Power consumption of one emitter — 2 х 85 W (2 lamps)
- Diameter of piping — 2" thread
- Lamp failure control device — visual
- Overall dimensions of assembled unit (length x width x height) — 940 × 192 × 160 mm
- Approximate weight — 11.64 kg
Feed water requirements
- Temperature of the treated water — +4...+30 °С
- Turbidity — 0.58 mg/L
- Total hardness — 2.5 meq/L
- Iron — 0.3 mg/L
- Manganese — 0.05 mg/L
- Hydrogen sulfide — 0.05 mg/L
Set of UV disinfection system
- Stainless steel housing assembly
- Quartz sleeve
- UV emitter
- Power supply (electronic ballast)
EB45
