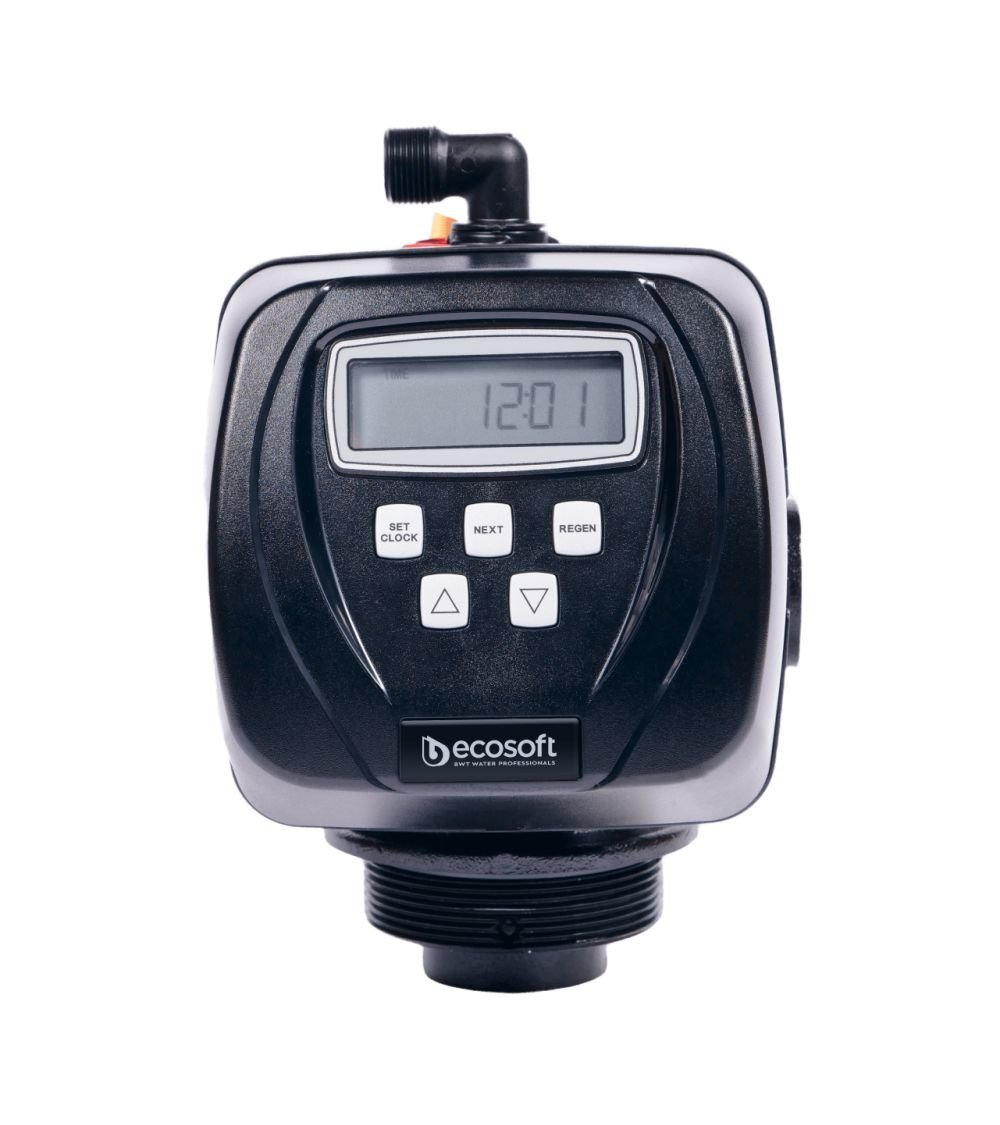

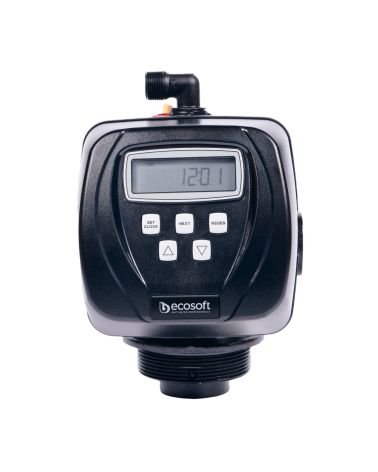

• 2” Top mount control valve suited for commercial/industrial applications
• Epoxy coated lead free brass valve body
• Economical stainless steel optional meter assembly
• Service flow rate of 435 lpm (26.1 m3/h) (115 gpm), backwash 303 lpm (18.2 m3/h) (80 gpm)
• Solid state microprocessor with easy access front panel settings
• Front panel display for time of day, days until next regeneration, volume remaining and current flow rate
• Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
• Program in ppm, French degrees, German degrees, or cubic meters
• Fully programmable regeneration cycle sequence (maximum 9)
• Programmable regeneration cycle times
• Days override feature; 1 – 28 days available
• Coin Cell Lithium battery back-up with an 24 hour carry over
• Level VI 15-volt output DC power supply provides safe and easy installation
• Pre or Post treated water regenerant refill
• 24-hour clock
• Reliable and proven DC drive
• One piece expanding seal spacer stack assembly
• Linearly reciprocating piston operation

‍

Specifications

FLOW RATES

Service @ 15 psi/1 bar drop - 435 lpm (26.1 m3/h) (115 gpm)

Backwash @ 25 psi/1.7 bar drop - 435 lpm (26.1 m3/h) (115 gpm)

Cv Service - 29.7

Cv Backwash - 16.0

OPERATING PRESSURES

Minimum/Maximum: 20 - 125 psi (1.4 - 8.6 bar)

OPERATING TEMPERATURES

Minimum/Maximum: 40º - 110º F (4º – 43º C)

METER

Accuracy: ± 5%

Flow Rate Range: 5.7 - 568 lpm (1.5 - 150 gpm)

Volume Range: 0.02 - 5,700 m3

Totalizer: 1 m3 - 99,999 m3

DIMENSIONS & WEIGHT

‍Distributor Pilot

      Valve bodies with 2" Female BSPT Inlet & Outlet - 50 mm OD

      Valve bodies with 2" Female NPT Inlet & Outlet - 1.90” OD (1.5" NPS)

Drain Line Connection - 1.5” Female NPT

Brine Line Connection Adapters Included - 1” Male NPT elbow,  ¾” x 1” solvent weld elbow and  1⁄2" OD Poly Tube Compression

Mounting Base - 4" - 8 UN

Height From Top Of Tank - 216 mm (8.5”)

Weight - 29 lbs (13 kg)

‍

‍

TANK APPLICATIONS

Water Softener: 6" - 48" Diameter

Water Filter (2): 6" - 36" Diameter

‍

CYCLES OF OPERATION

Choose up to nine regeneration cycles, in any order, with a wide range of available values:

Backwash: 1 - 120 minutes

Rinse: 1 - 120 minutes

Pause (service): 1 - 480 minutes

Brine (co-current): 1 - 180 minutes

Brine (counter-current): 1 - 180 minutes

Refill (softener): 0.1 - 99.0 minutes

Refill (filter): 0.1 - 99.0 minutes

Options: Backwash Filter, Bypass, Weather Cover

Compatible with the following typical concentrations of regenerants or chemicals: Sodium chloride, potassiumchloride, potassium permanganate, sodium bisulfite, chlorine and chloramines

(1) See Distributor Pilot.

(2) Filter tank size calculated @ 407 lpm per m2 of bed area/10 gpm of backwash per square foot of bed are

‍
