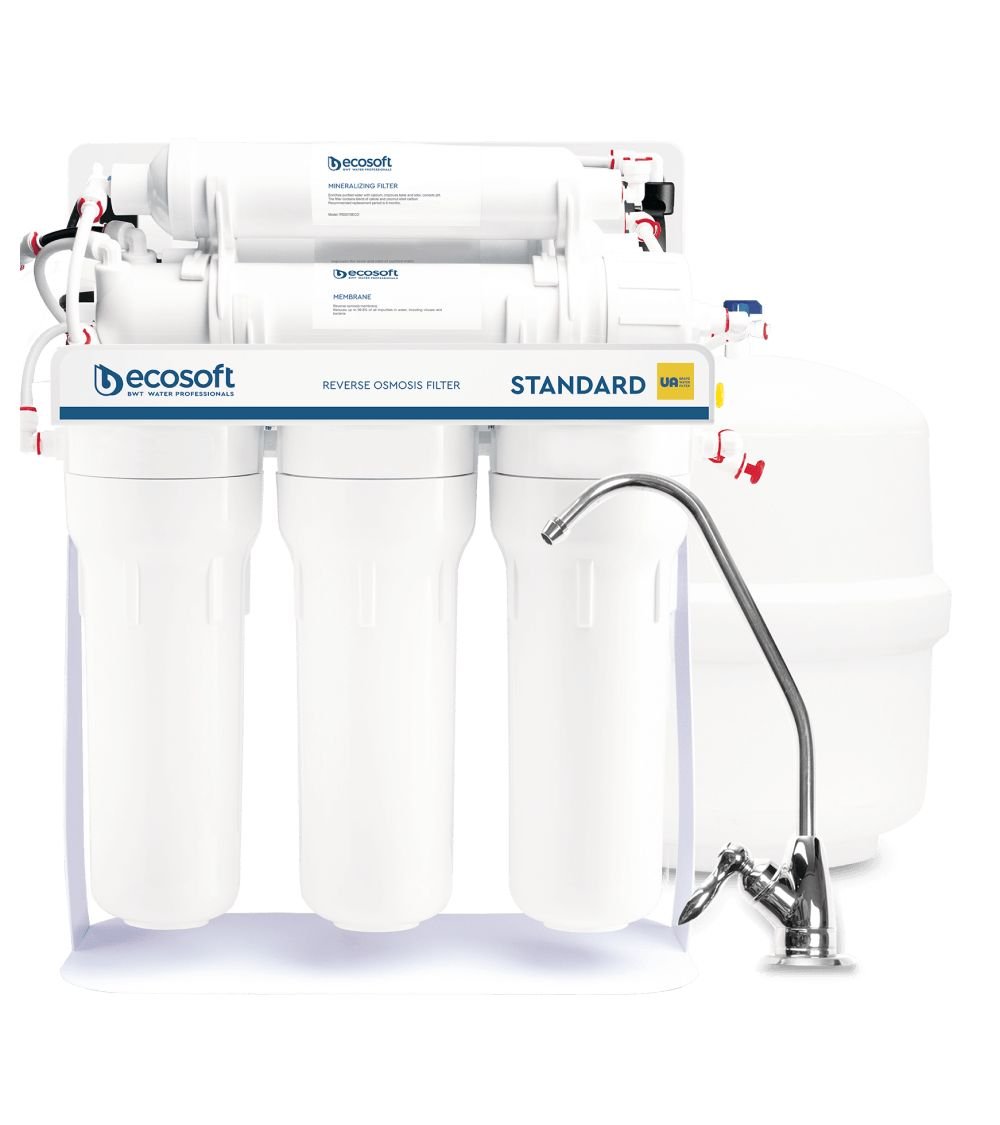

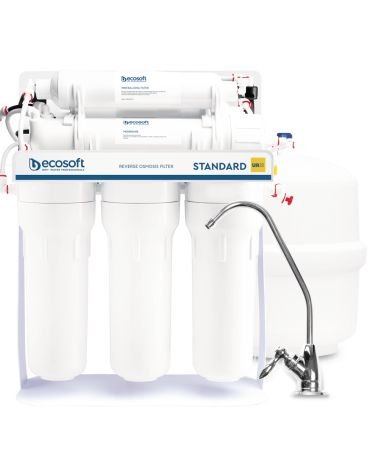

Ecosoft Standard PRO reverse osmosis filter with mineralization and pump on metal rack
187,55 €
PARAMETERS
Flow capacity 8 L/h
Recovery 10-20 %
TDS (purified water) 20-30 mg/L
Inlet water pressure 2-5 bar
TDS (inlet water) 1500 mg/L
Electrical requirement 230 V, 50 Hz
PARAMETERS
Flow capacity 8 L/h
Recovery 10-20 %
TDS (purified water) 20-30 mg/L
Inlet water pressure 2-5 bar
TDS (inlet water) 1500 mg/L
Electrical requirement 230 V, 50 Hz
MO550MPSECOSTD
KEY FEATURES
- Designed for low pressure water supply systems
- The filter is steady and simple in maintenance due to the metal rack
- 5 stages of water purification including mineralization
- 7.9 L/2.1 gal of drinking water per hour
- Ecosoft membrane element
- Filter housing made of food grade plastic manufactured in the EU
SIZE AND WEIGHT
Dimensions, H×W×D: 485×410×195 mm
Filter weight 11.95 kg
SPECIFICATION
System components
- Filter housing with booster pump on metal rack
- Ecosoft pack of pre-filters for reverse osmosis filter
- Ecosoft 50 GPD (190 LPD) membrane element
- Ecosoft mineralization filter
- Chrome ball valve faucet for purified water
- Plastic pressure tank (total vol. 12 L/3.2 gal, usable vol. up to 7 L/1.8 gal) and tank valve
- Feed water adapter, feed valve, drain saddle
- Pack of color tubes (4 pcs) for convenient filter installation
- Service wrenches
- User manual
Quality of purified water
- pH 6.5-7.5
- Total mineral content — 20-30 mg/L
- Calcium <10 mg/L
- Magnesium <1 mg/L
Source water requirements
- pH = 6.5–8.5
- Total dissolved solids ≤ 1500 mg/L
- Hardness ≤ 10.0 meq/L (<500 mg/L CaCO₃)
- Chlorine ≤ 0.5 mg/L
- Total iron ≤ 0.3 mg/L
- Manganese ≤ 0.1 mg/L
- Chemical oxygen demand ≤ 5 mg O₂/L
- Total microbial count (TMC) ≤ 50 CFU/100 ml
- Coliform index ≤ 3
MO550MPSECOSTD
